Crystal View Estates - Lake Chelan

Float Type: Steel Frame
Owner: Crystal View Estates HOA
Owner’s Representative:  TRANSPAC MARINAS
Location: Chelan, WA
Date Completed: 2018

Design Features:

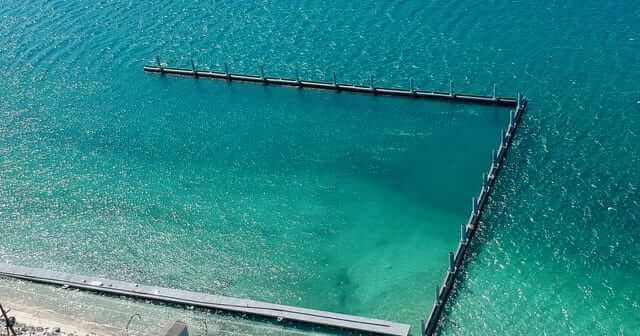

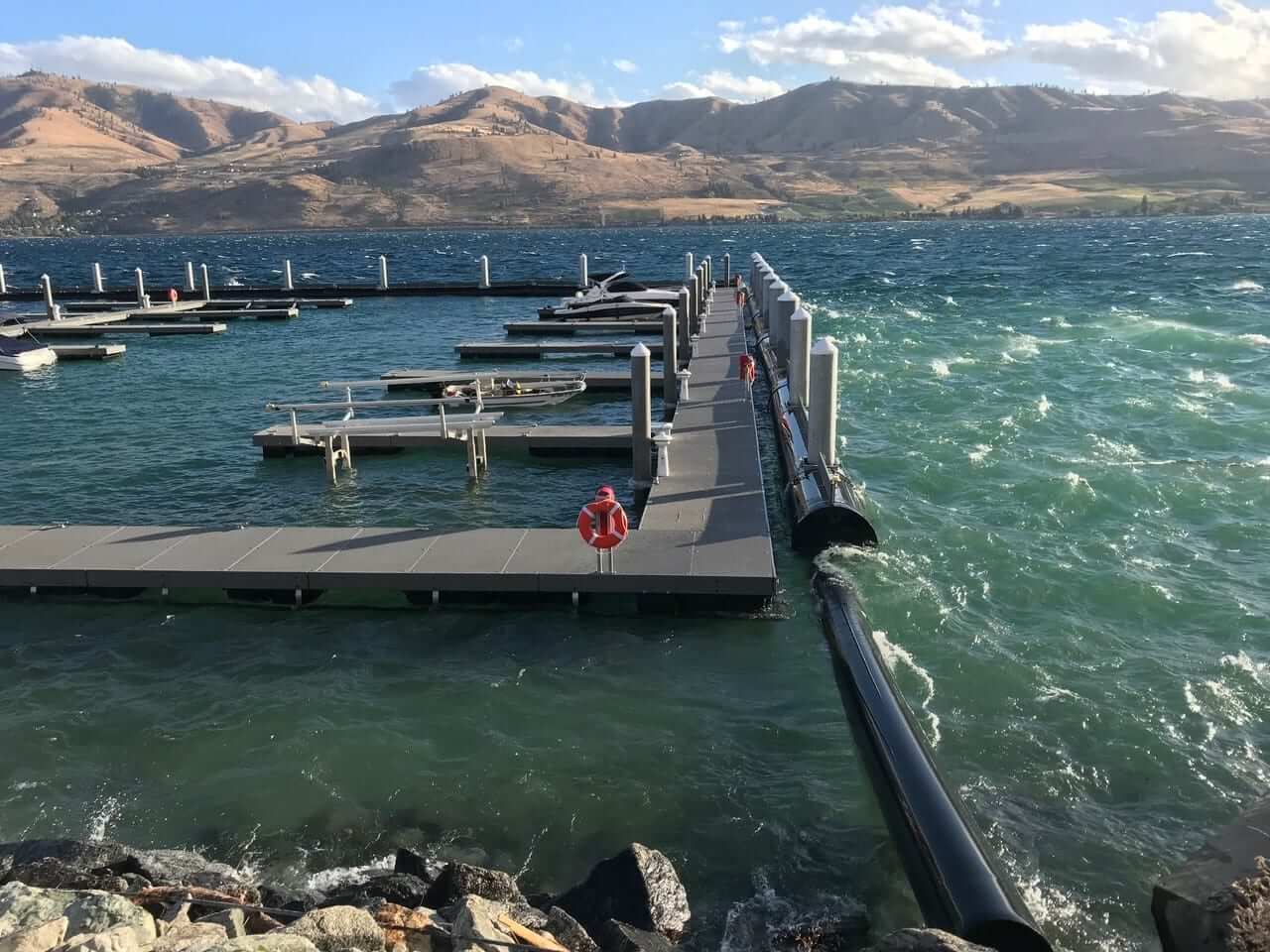

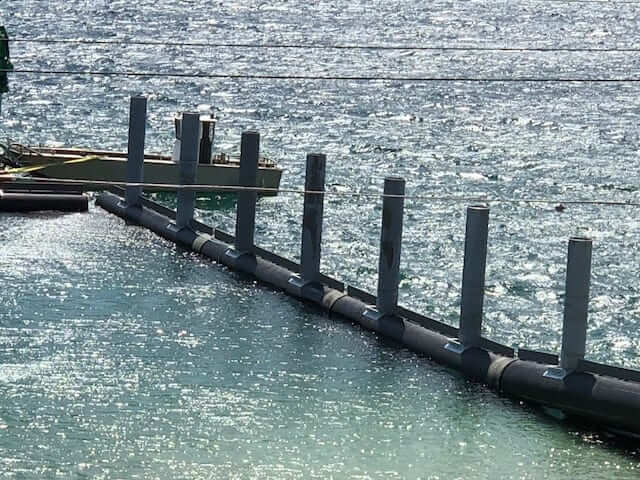

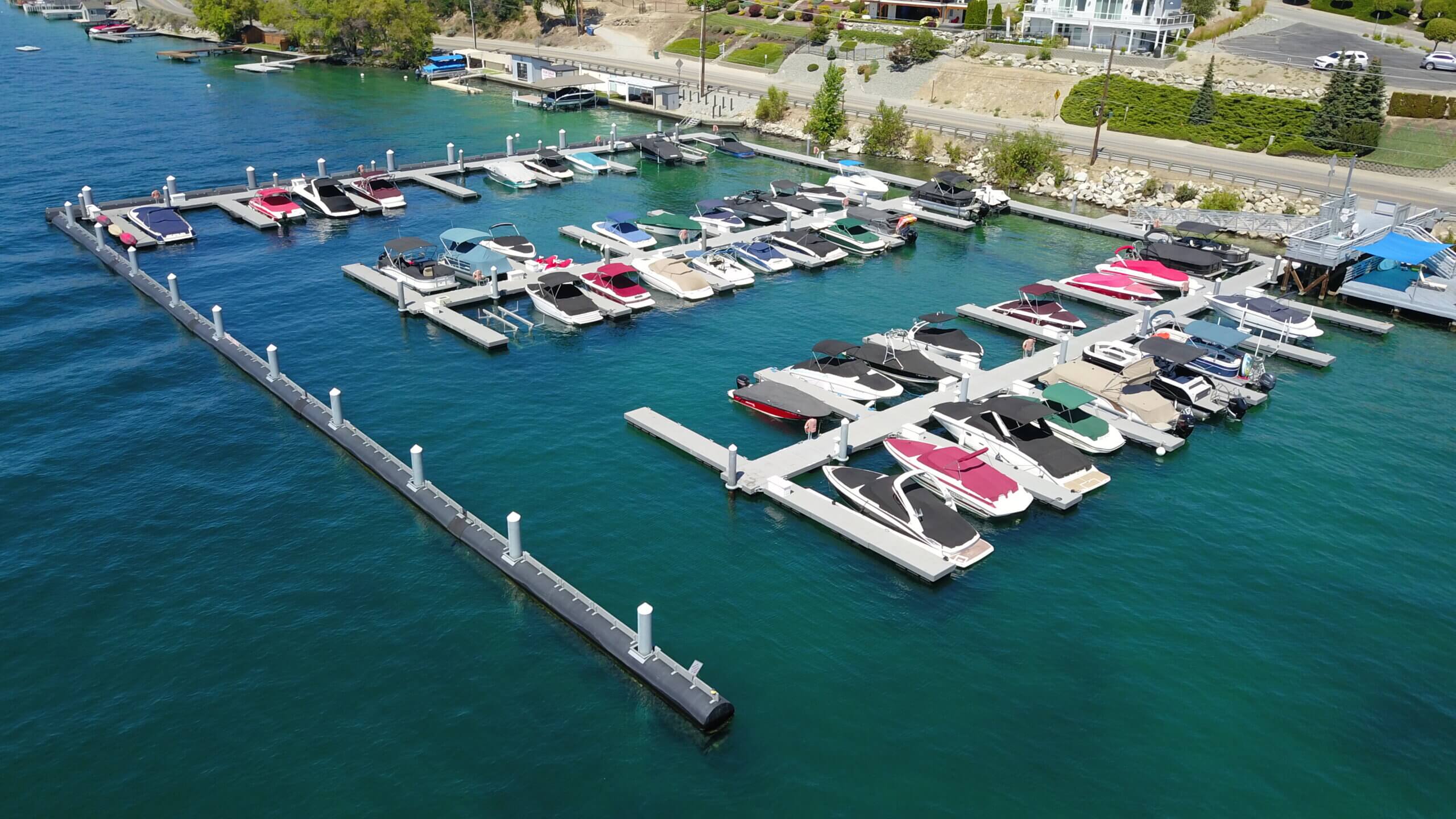

Bidder-design, engineer, manufacture and install floating wave attenuator, marina moorage floats and guide pile system. The floating wave attenuator is 456’ of partially-penetrating HDPE-pipe wave wall designed to withstand wind-driven waves 4.7’ significant height and 3.3-second period.

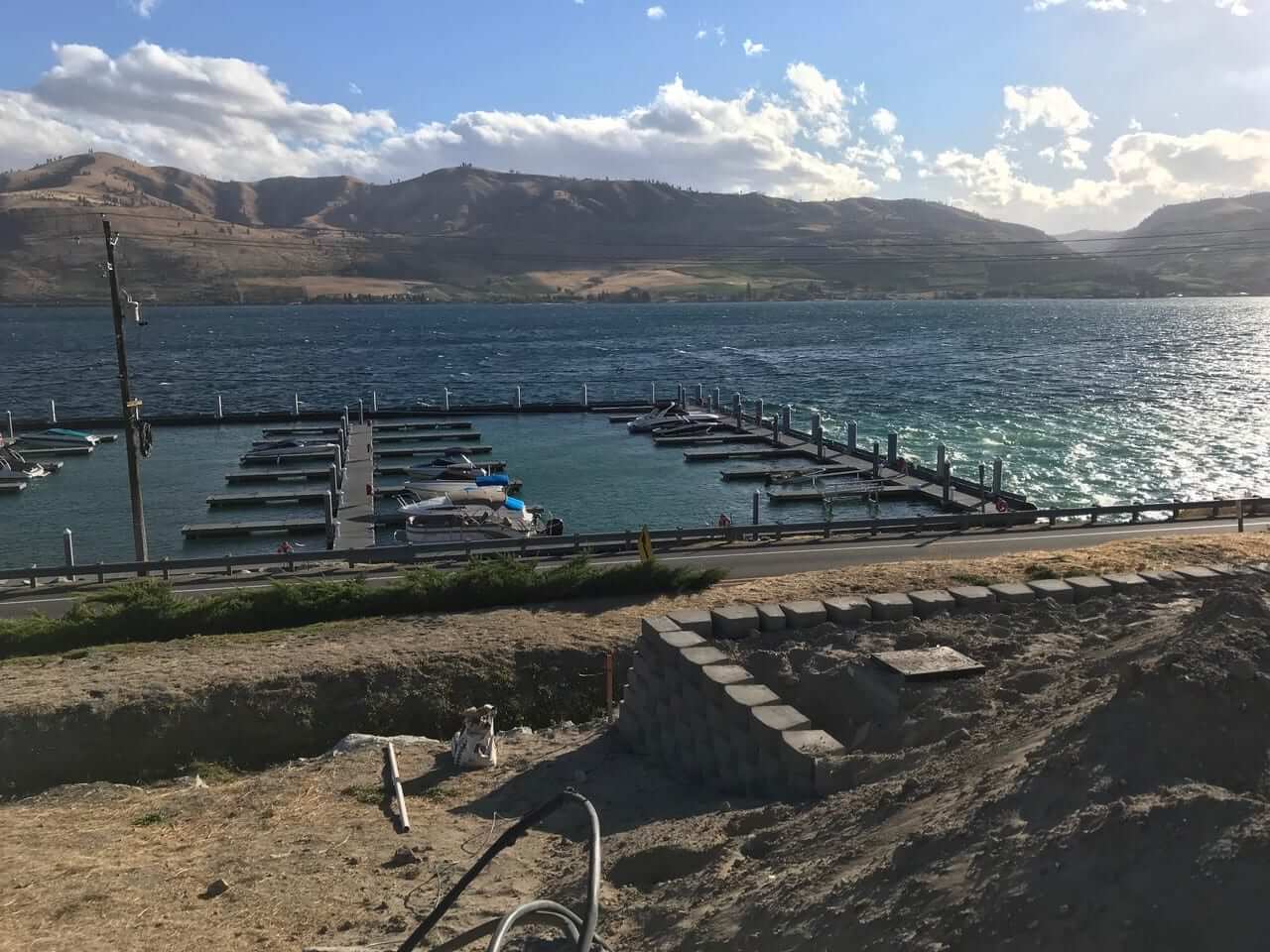

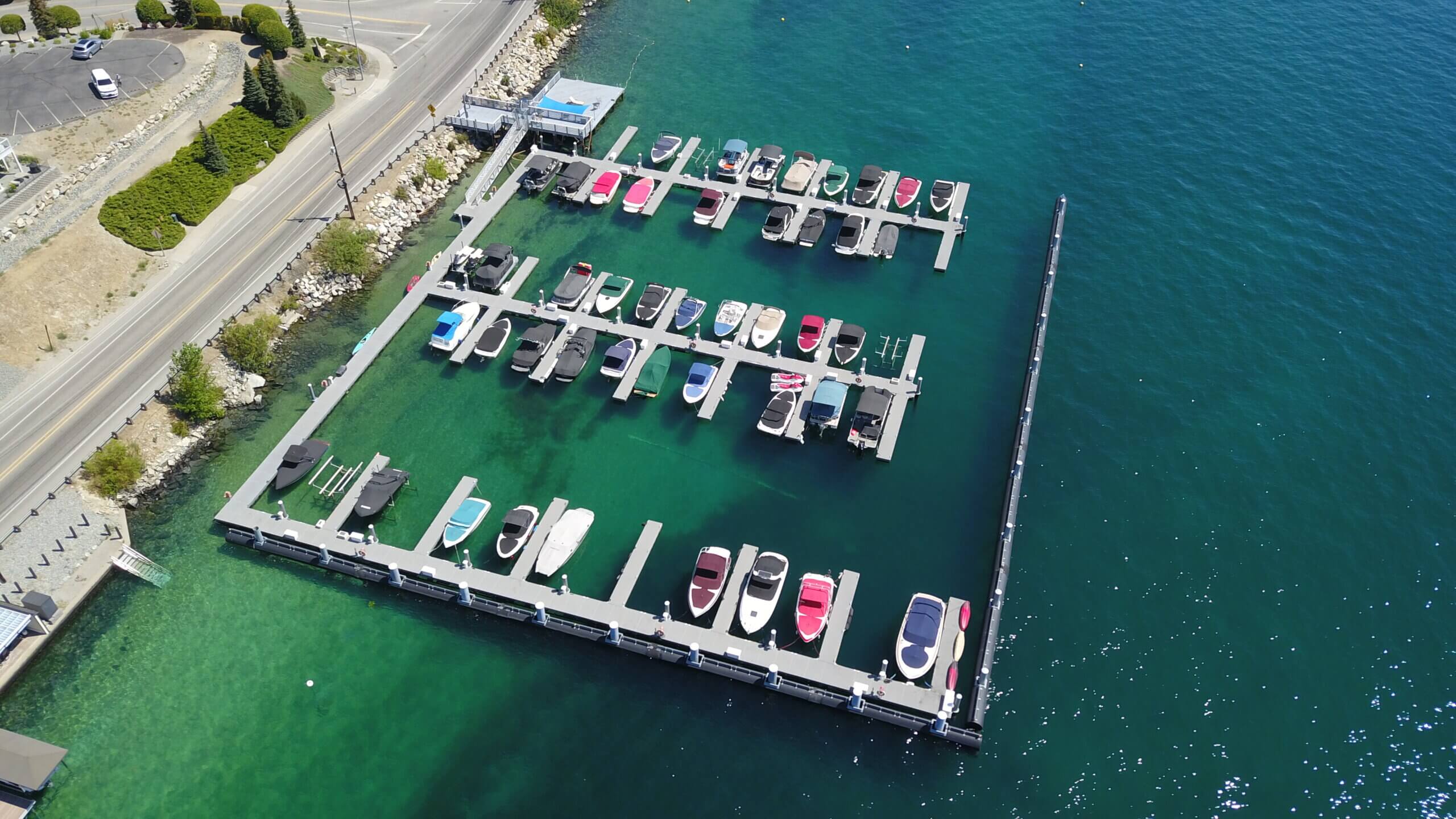

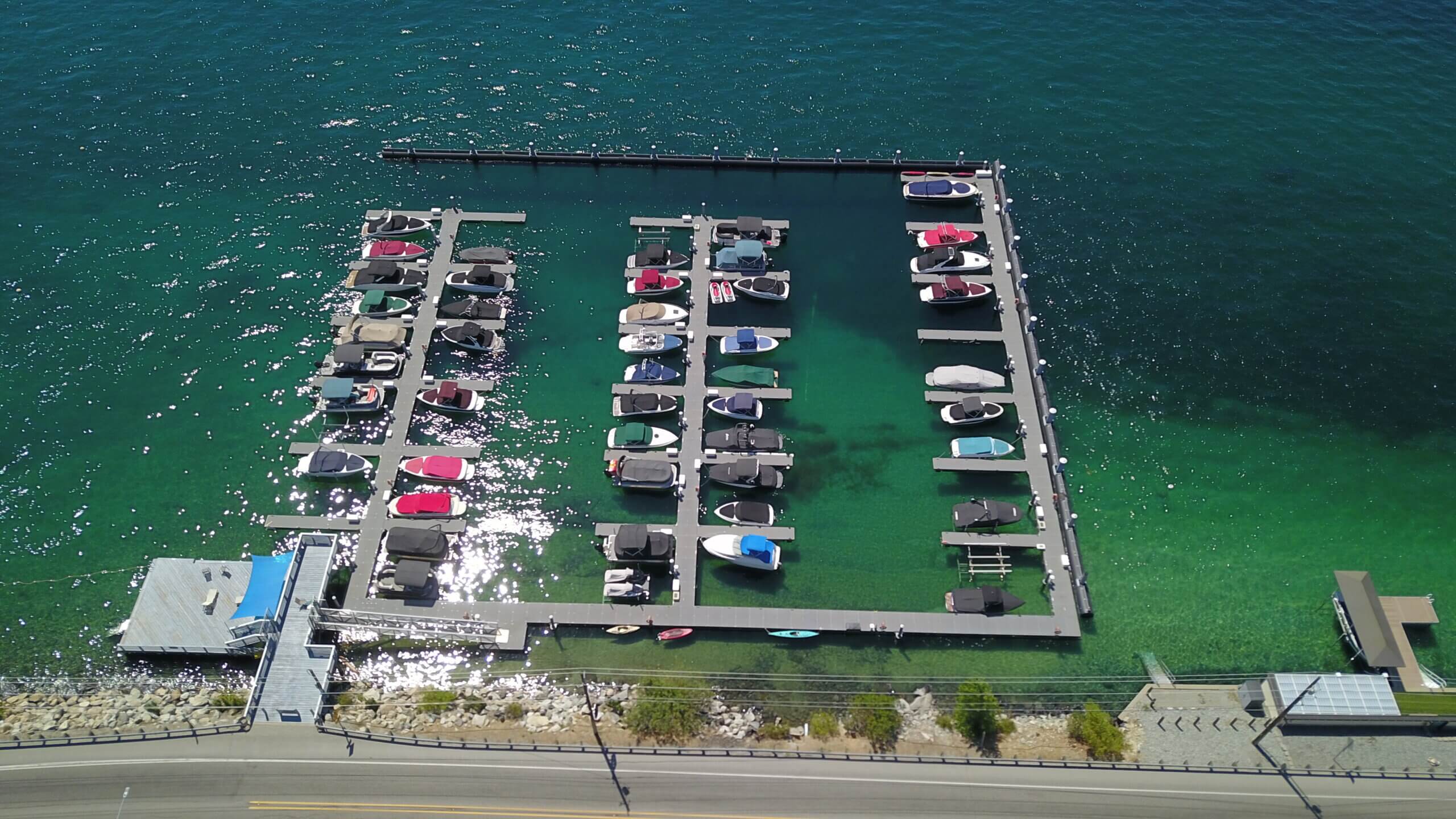

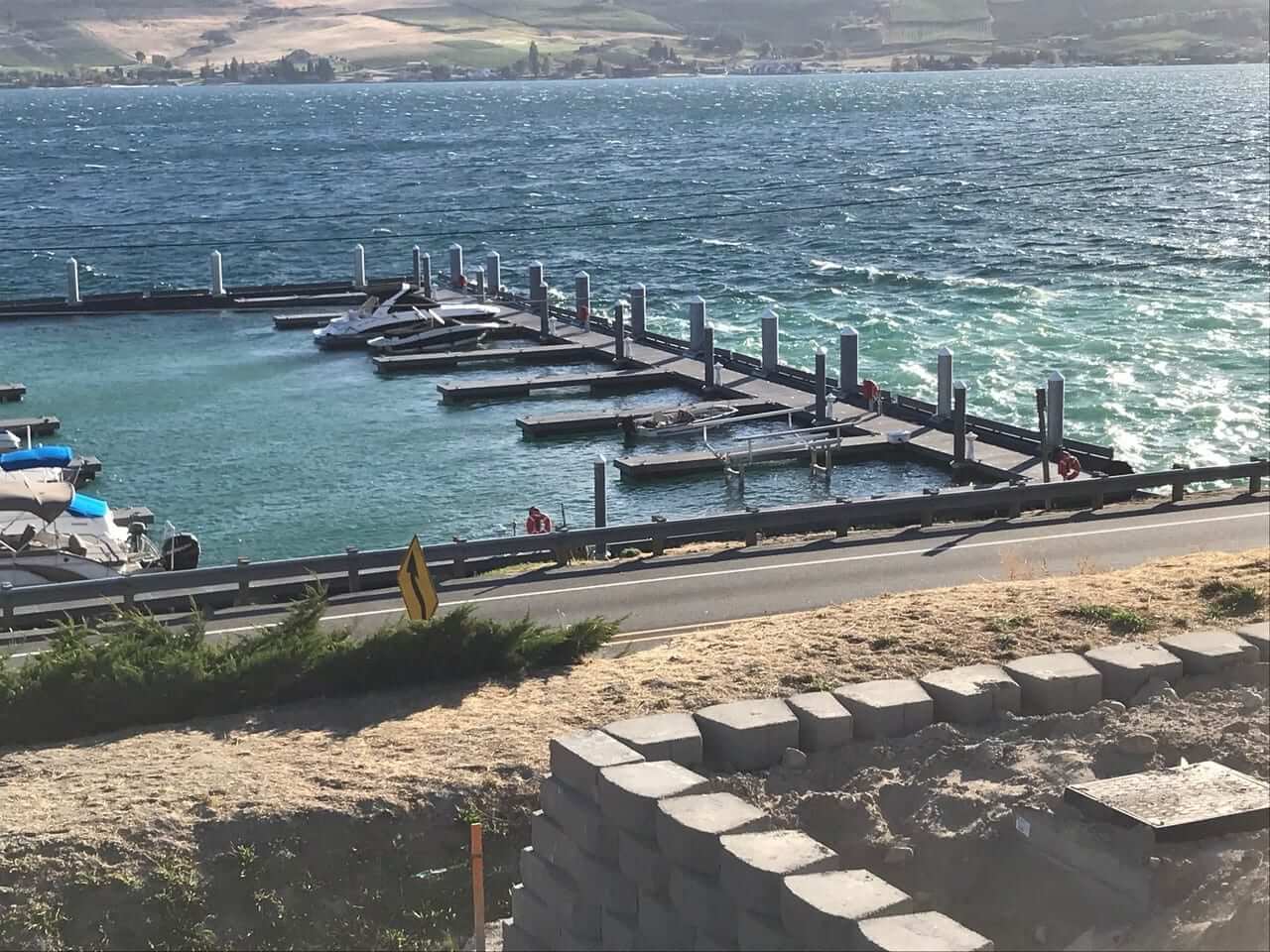

The marina moorage includes 61 slips for recreational boats in 25’ or 30’ lengths. The hot-dip galvanized tube steel framed float system was designed with great durability, user comfort and public safety in mind.


“Without exception, I will contract with and recommend TRANSPAC MARINAS to anyone needing an exceptional contractor that is honest to a fault, focused and committed to exceptional workmanship and service.”
